Fig. 2
Download original image

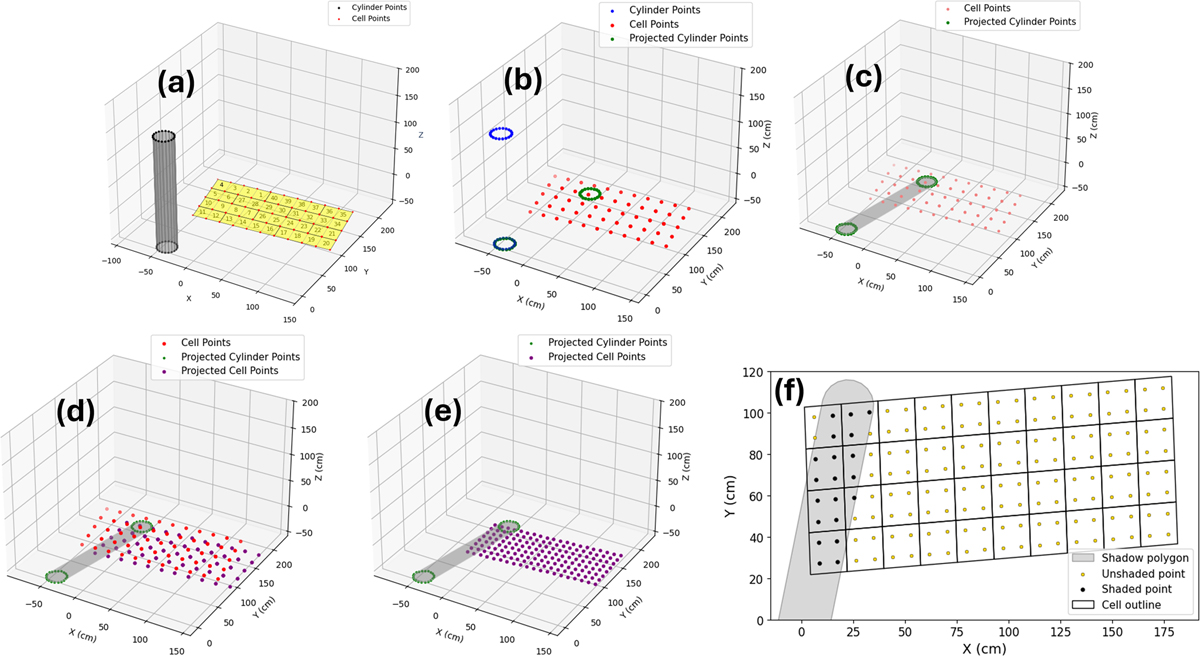

2D approach: (a) model configuration, (b) obstacle vertices projected onto ground plane, (c) 2D shadow polygon, (d) cell corners projected onto ground plane, (e) points sampled at desired resolution on ground plane, (f) point-in-polygon test for shadow intersection.
