Fig. 7
Download original image

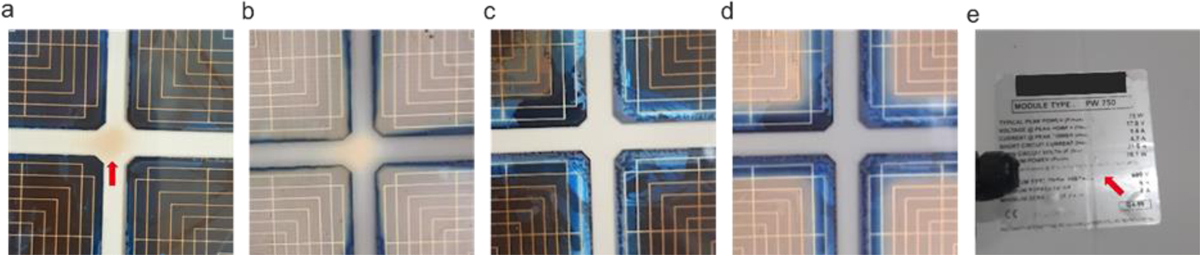

(a) Specific intercell region where encapsulant yellowing is preserved. (b) The same region under 365 nm UV illumination, showing reduced photobleaching. (c) Typical intercell region without preserved yellowing. (d) The same typical region under 365 nm UV illumination, exhibiting photobleaching due to oxygen ingress. (e) Backside view of the module showing the aluminum-backed nameplate corresponding to the preserved yellowing location. Red arrows indicate the matching front-side and back-side positions.
