Fig. 7


Download original image

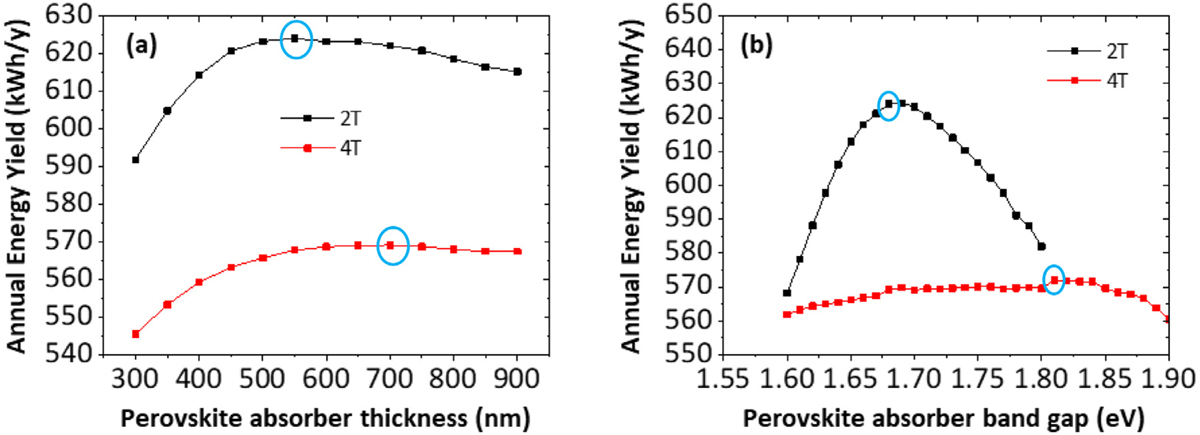

Annual energy yield of 2T and 4T perovskite/poly-SiOx tandem for (a) varying perovskite thickness (perovskite bandgap is fixed to 1.68 eV for 2T and 4T tandem) and (b) varying perovskite bandgap (perovskite thickness is fixed to 550 nm for 2T and 700 nm for 4T). The 4T and 2T poly-SiOx simulations have been carried out at Rome at an optimum tilt of 27°. The blue circles indicate the optimal perovskite thickness and bandgap respectively.
