Fig. 1

Download original image

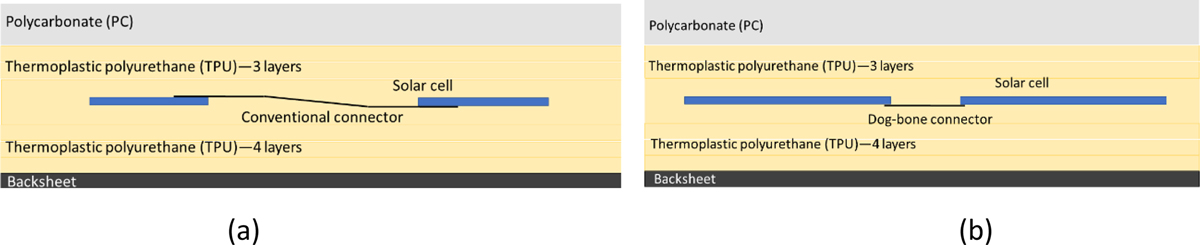

Architecture of the LW modules studied for (a) mechanical loading experiments – employing half-cells and (b) cell gap measurements – employing full-size IBC cells.
