Fig. 7
Download original image

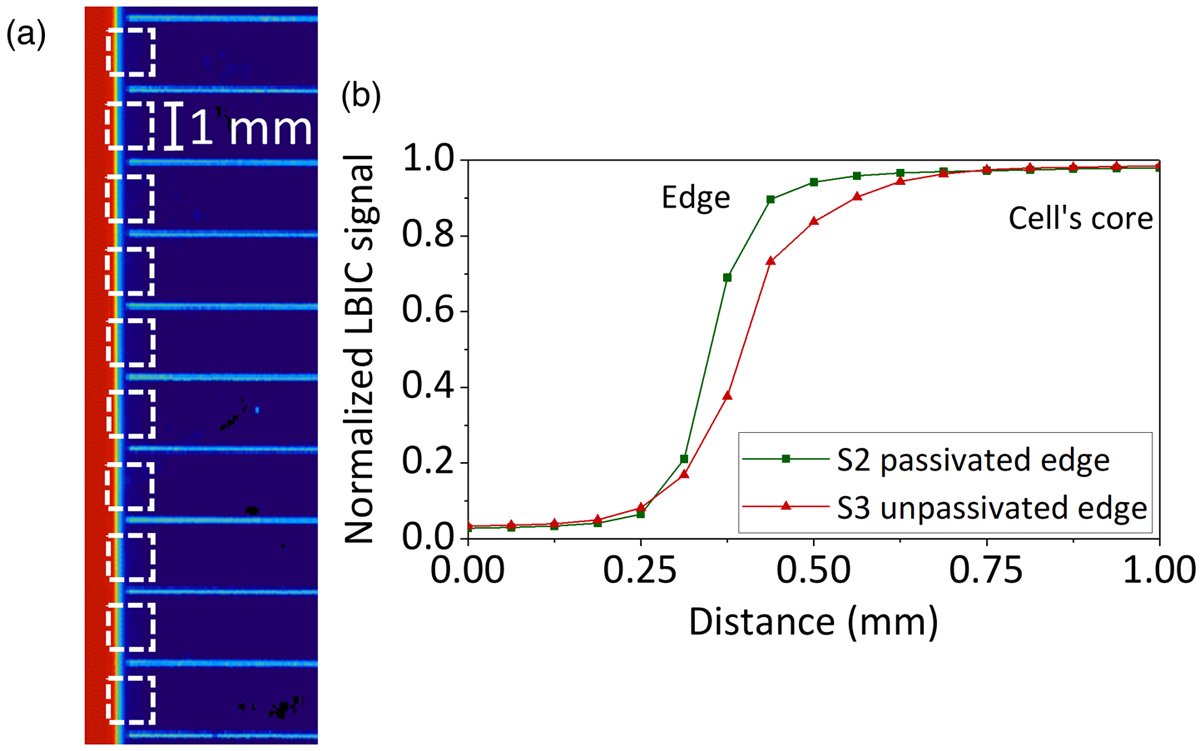

(a) LBIC mapping (852 nm laser) with the studied areas annotated. (b) LBIC profiles of an S2 passivated and an S3 unpassivated edge. Both samples have an AlOx layer on the front and the rear sides.
