Fig. 6
Download original image

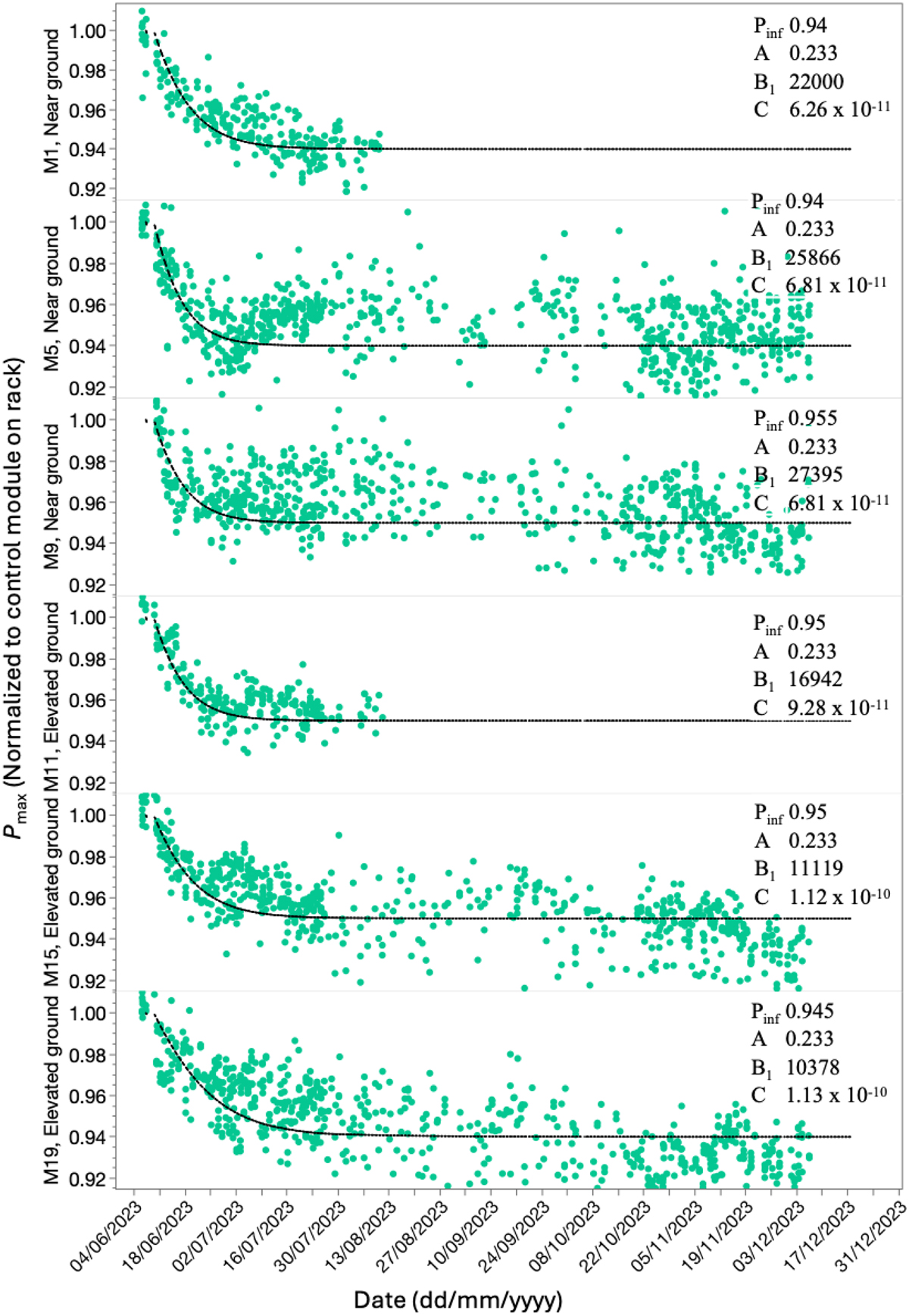

Application of a sigmoidal model for Pmax of various modules (normalized to unbiased control modules) as a function of time and rack type shown for the first 6 months after −1500 V peak system voltage applied. Testing of modules M1 and M11 terminated earlier due to system problems.
