Fig. 1
Download original image

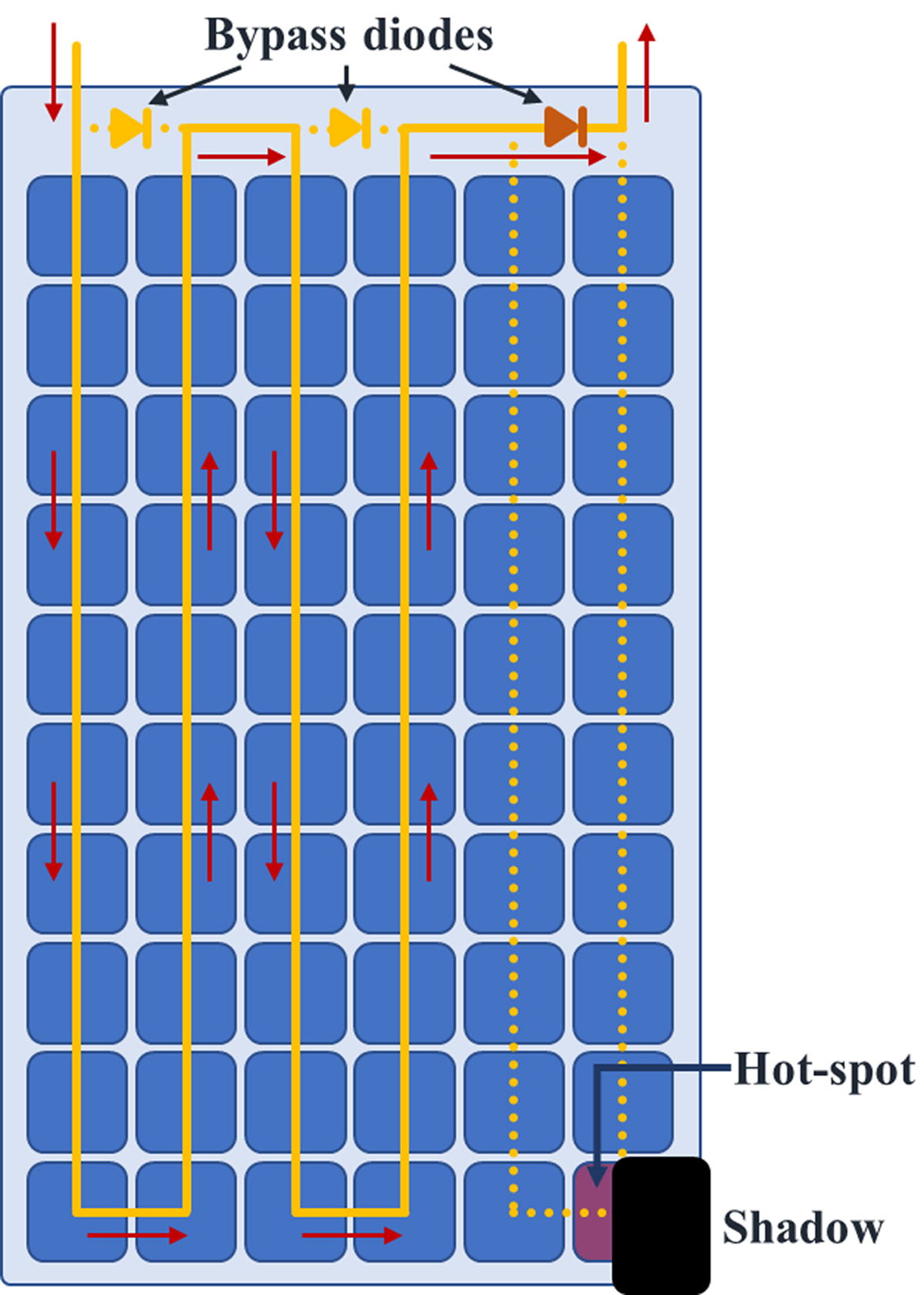

Simple schematic of a conventional 60-cell PV module with three bypass diodes (3 strings in series) under partial shading conditions of a cell with an activated bypass diode. Hotter bypass diode and cell are indicated by using different colours. Red arrows indicate current flow.
