Fig. 3


Download original image

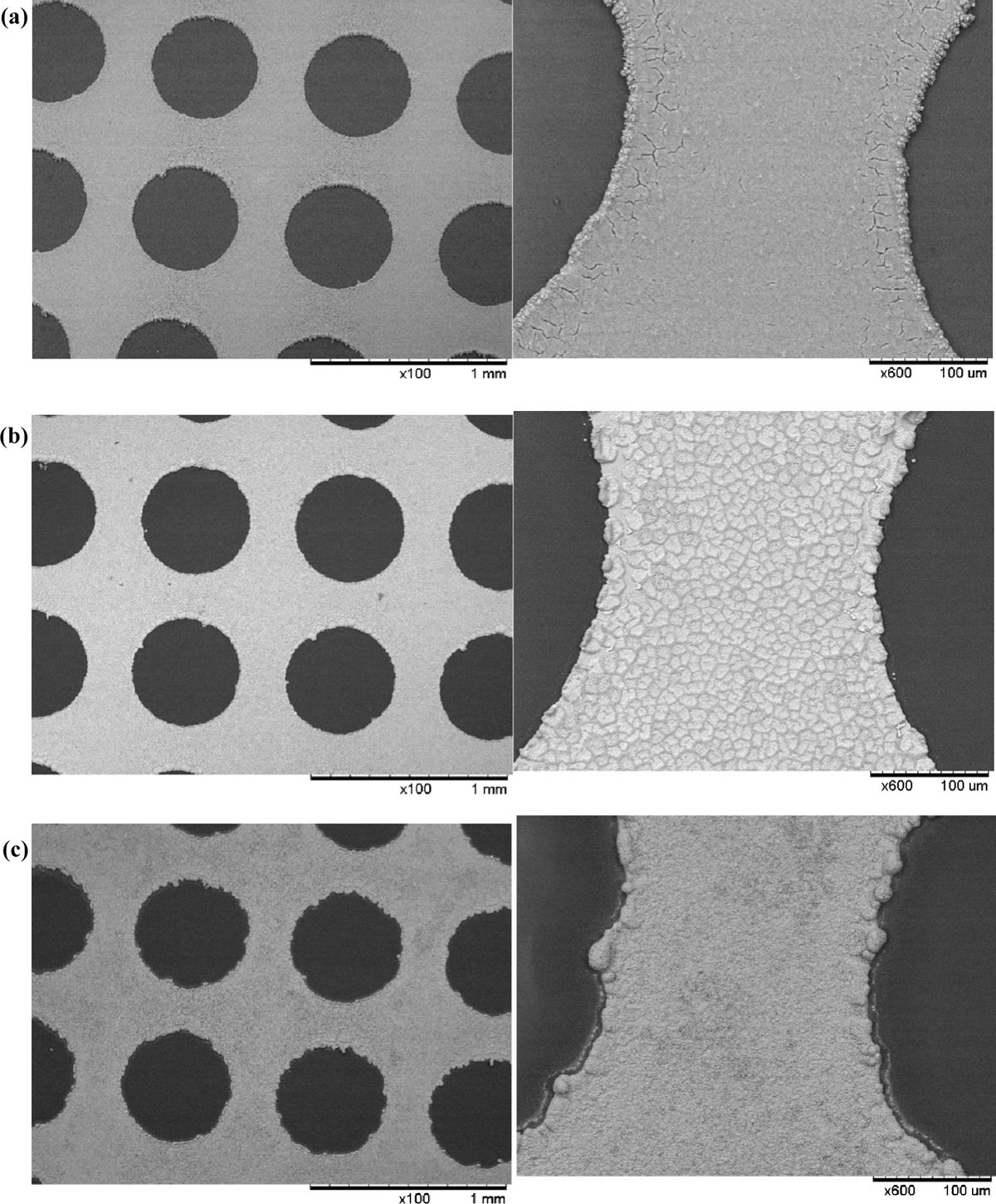

(a) SEM image of localized co-electrodeposited mixed hydroxides thin layer (Cu(OH)2, In(OH)3, GaOOH) − (b) SEM observation of the surface of Cu-In-Ga after H2 annealing at 520 °C − (c) SEM observation of the surface of Cu(In,Ga)Se2 after selenisation annealing at 580 °C − [for each, left: view of several patterns ; right: zoom on a channel between two holes].
