Fig. 11

Download original image

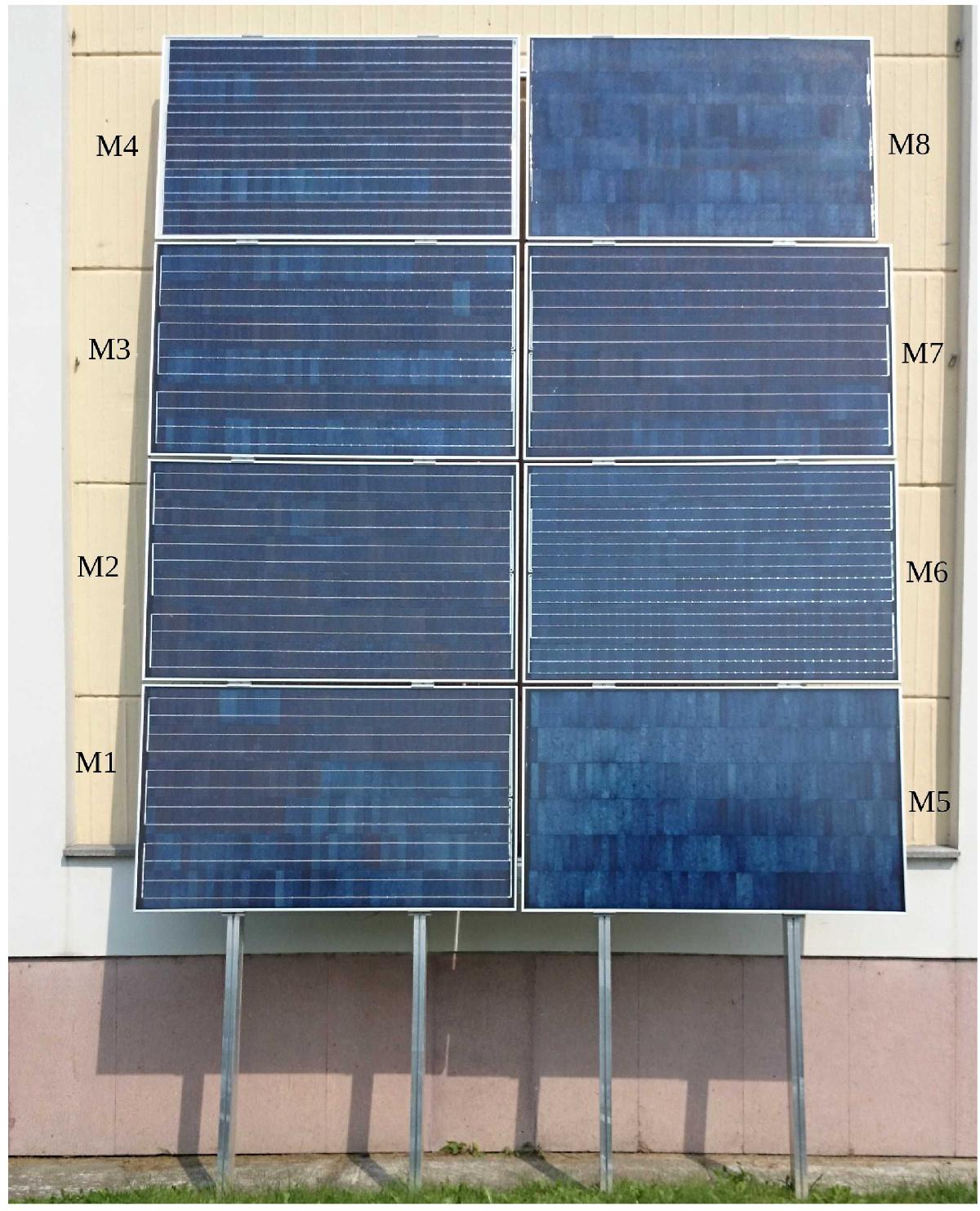

Modules mounted for outdoor monitoring at south west facade of Institute of Atomic and Subatomic Physics at TU Wien. The outer dimensions of modules M1-M7 are 1629 × 982 mm, those of M8 are 1564 × 982 mm.
