Fig. 5

thumbnail

Download original image

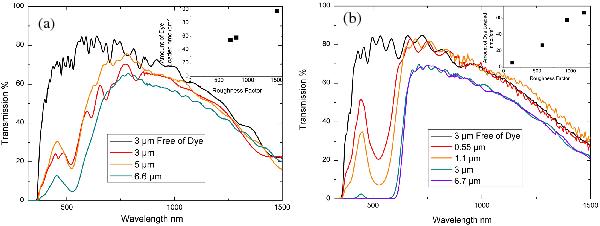

Total transmission of nanoporous structures loaded during (a) 2 h with N719 and (b) 15 h with D149 for increasing charge density consumed. Total transmission of a film prepared with deposition of 4 C/ cm2 is given as reference. Insets of each figure represents the evolution of the amount of dye molecules loaded with respect to the developed surface calculated from the transmission data.

This figure is made of several images, please see below:
