Fig. 9
Download original image

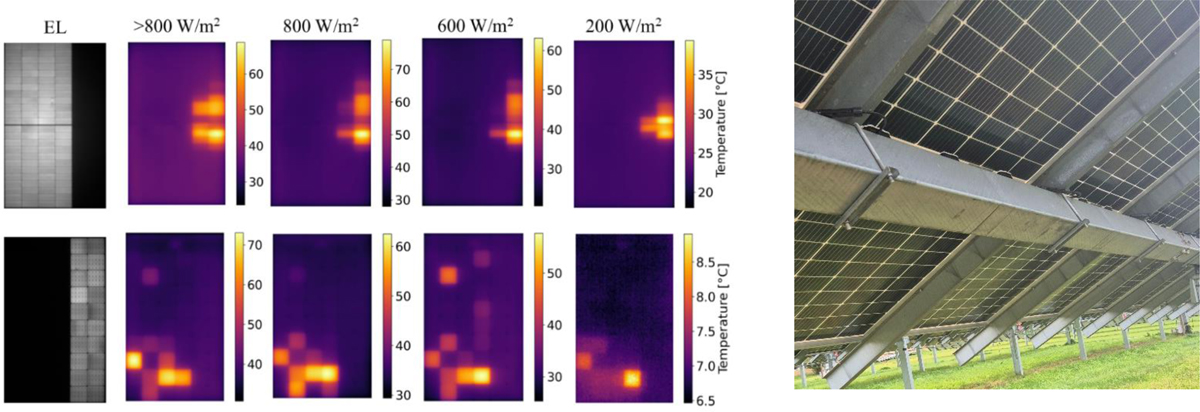

a) IRT images of two modules with a sort-circuited bypass diode at different irradiances imaged at 8 m drone altitude. EL image as a reference. b) Rear side picture of the mouting frame of the PV modules installed in the field. The beam location corresponds to the hoptspot location of the bifacial halfcut modules causing rear side partial shading.
