Fig. 10
Download original image

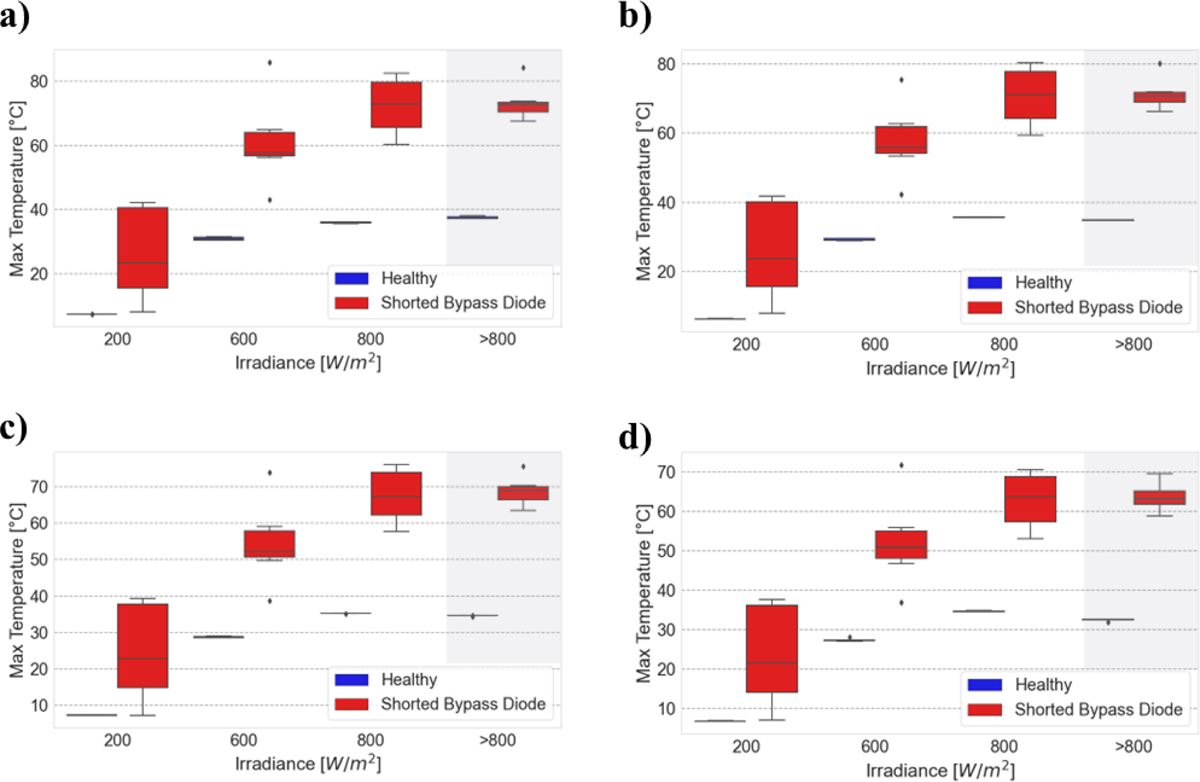

Distribution of maximum module temperatures for each measured plane of array irradiance at all drone altitudes studied. a) Inspection at 8 m. b) Inspection at 10 m. c) Inspection at 14 m. d) Inspection at 20 m. PV modules with short-circuited bypass diodes (red), compared to healthy modules (blue) of the same type.
