Fig. 2
Download original image

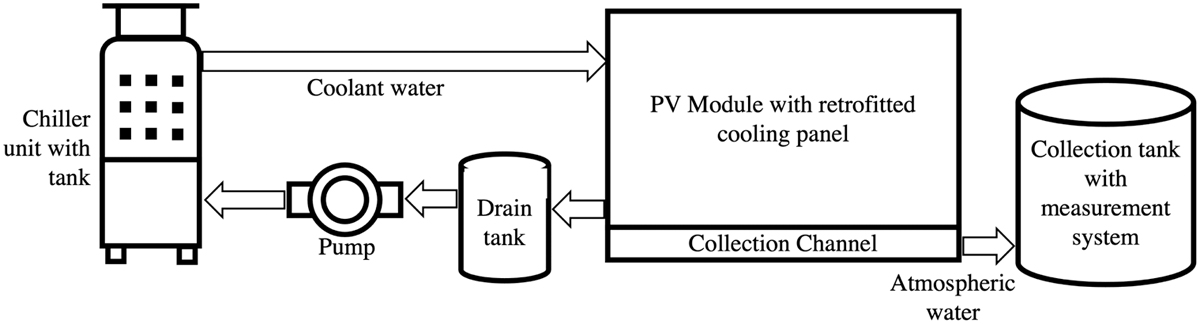

Schematic of the AWGPV system − Chilled water is supplied by the chiller unit which is made to circulate within the cooling panel and then flows back to the chiller using a drain tank and pump. The condensed water formed on the PV module surface is collected in the collection channel and then stored in the collection tank.
